85% Material Utilization of Metal Stamped Parts

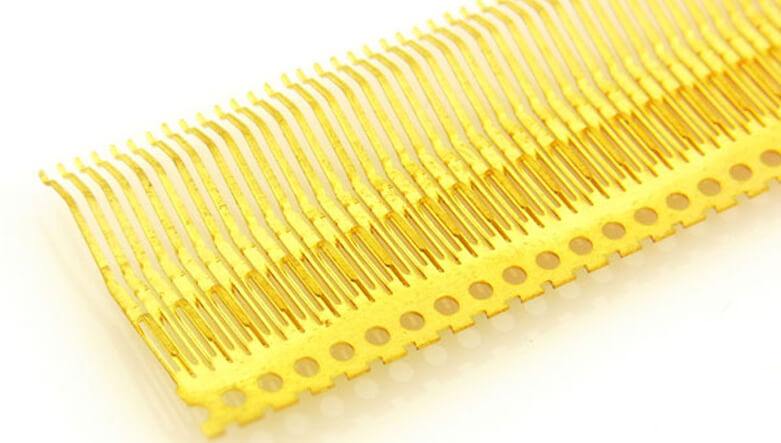

● Tooling material with points A,B and two belts ( while out ), can produce 16pcs per stroke.
● A, B terminals on the plug way deep in the tooling layout, material utilization of 85% ( high utilization).
● Tooling design clever, size can be mold trimming mode, production without frequent lower tooling.
● Entire die bold innovation, a Chinese patent.
| Material | C2680 |
| Material Thickness | .01″ |
| Type | Female |
| Plating | Gold |
| Plating Thickness | 1u” |
| Picth | 1.0mm |
| Stamping Speed | 600SPM |
| Dimension Tolerence | +/-0.02mm |
| Faltness | +/-0.05mm |
| Ture Position Tolerence | +/-0.05mm |
| Verticality | +/-0.05mm |
| Straightness | +/-0.05mm |
