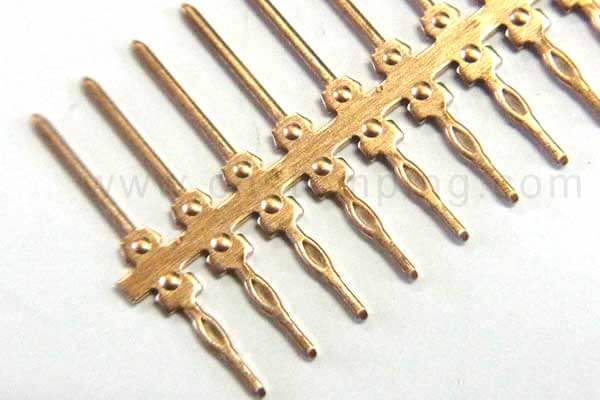

Eyelet Terminals

● High level of precision tooling processing, cutting oil required, PG, JG high-precision machining equipment (+/-0.001mm).



● Fisheye parts of the size and shape of the product focus, in order to ensure that the size and shape of the corner finish fish eye, the part must Use tungsten steel materials, and the need to use high-precision electrical fire toward the mirror EDM machine parts.

Material C5210 Material Thickness 0.6mm (0.02″)
Type Male Plating Gold
Plating Thickness 30u” Picth 5.08mm
Stamping Speed 400SPM Dimension Tolerence +/-0.01mm
Faltness +/-0.01mm Ture Position Tolerence +/-0.03mm
Verticality +/-0.03mm Straightness +/-0.03mm



Application

Communication equipment connector terminals.
