Super-precision BTB Connector Terminals for Consumer Electronics Industry

● High level of precision tooling processing, cutting oil required, PG, JG high- precision machining equipment +/-0.001mm.



● Product stringent dimensional tolerances(+/-0.008mm), Product stringent dimensional tolerances, as plastic body pitch is small, with small tolerances.



● Terminal bend more complex shape, bending also require small size tolerance(+/-0.01mm).

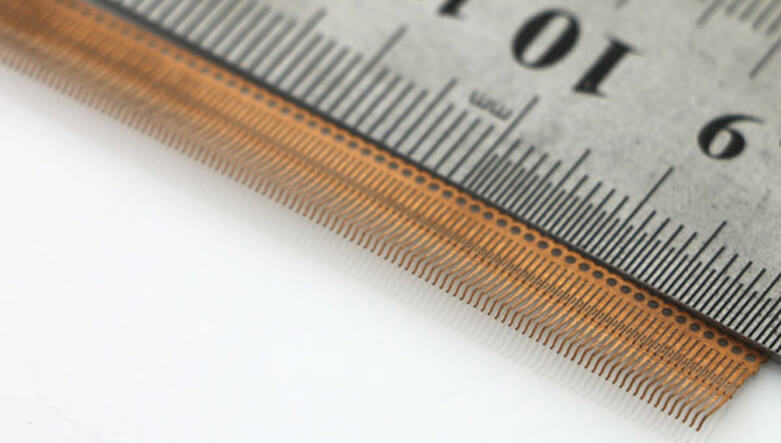

0.4 Pitch BTB Terminals Specifications

Material C5210
Material Thickness 0.1mm
Plating Gold
Picth 0.4mm
Stamping Speed 500SPM
Dimension Tolerence +/-0.01mm
Straightness +/-0.001mm



Application

Mobile phones, computers and other consumer electronics soft cable connector terminals.
